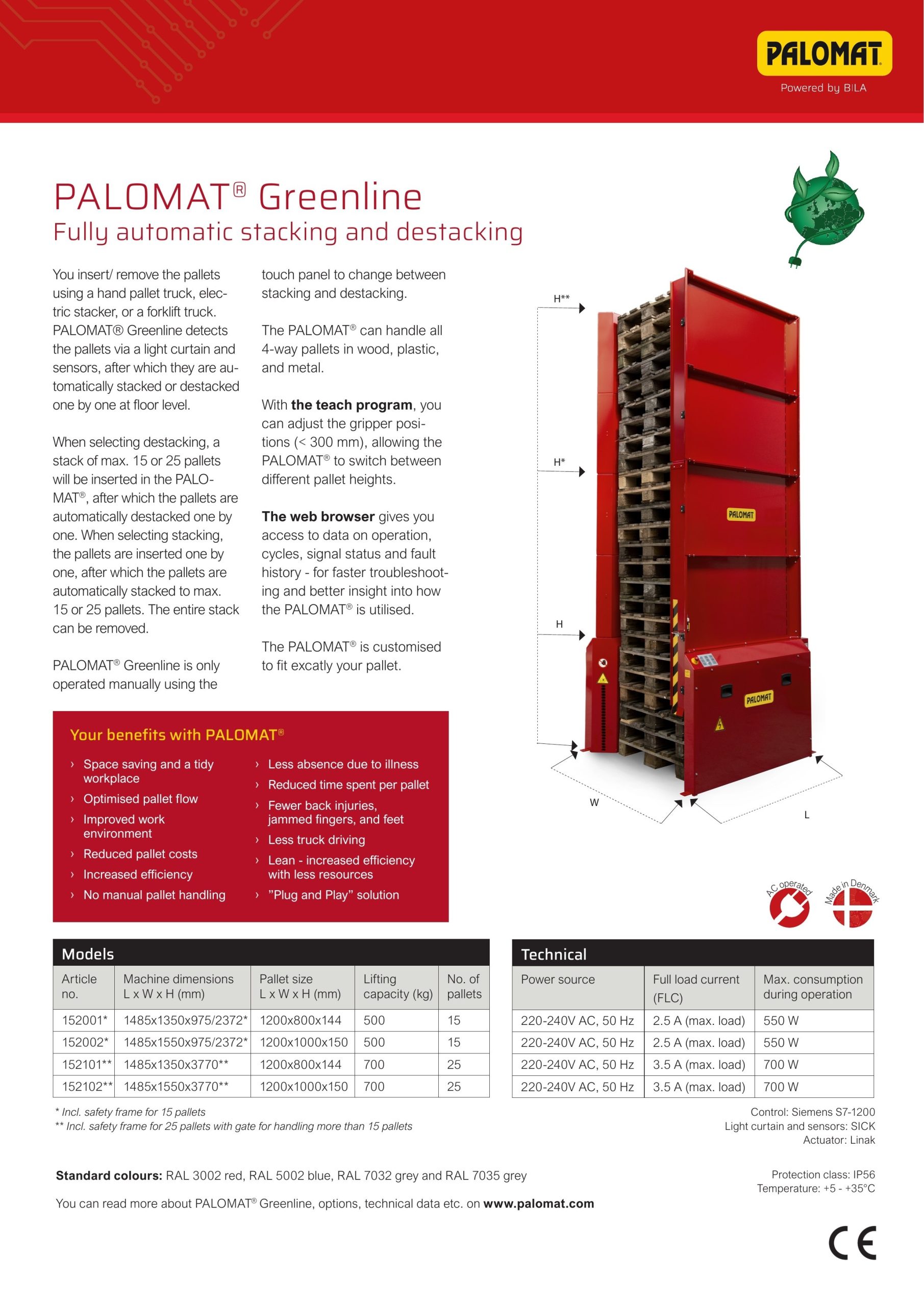

Palomat

Palomat

– Fully automatic stacking and destacking

You insert or remove the pallets using a hand pallet truck, electric stacker or a full-size forklift truck. Al handling is carried out at floor level. The PALOMAT® Greenline de- tects the pallets via photo sensors after which they are fully automatic stacked or destacked one by one.

When selecting destacking, a stack of no more than 51 to 25 pallets wil eb inserted in the PALOMAT”, after which the pallets are fully automatic destacked one by one. When select- ing stacking, the pallets are inserted one by one, after which the pallets are fully automatic stacked to no more than 15 to 25 pallets. The entire stack can subsequently be removed.

PALOMAT® Greenline si only oper- ated manually using the touch panel when there si to be a change between stacking and destacking or vice versa. In addition to this, the PALOMAT® Greenline operat
es fully automatic.

The PALOMAT® can handle al 4-way pallets in wood, plastic and metal no matter what the length, width or
height. We can customise the PALOMAT® to exactly match the pallet size you use.

For standard pallet formats:

• 600×800 mm
• 800×1200 mm
• 1000×1200 mm
• 1200×1200 mm

For different formats expect slightly longer lead time.
